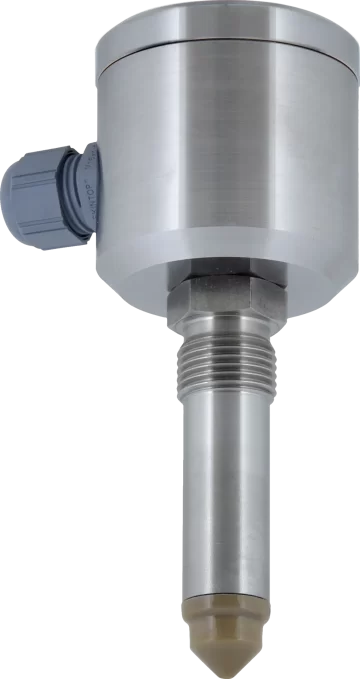

Anderson-Negele NCS L60 Series
Point level sensor for double-walled vessels | Food, Beverage and Dairy
Point Level Sensors
Gap optimized, capacitive limit detection in double walled metallic vessels with hygienic thread G½” (CLEANadapt).
- Version with extended installation length for double walled / insulated vessels.
- Reliable detection, unaffected by the conductivity of the medium.
- Insensitive to foam.
- Extended measuring range from Dk ≥ 2 for difficult media.
- Very short response time <1 s.
- For water based media with Dk>= 20.
- Independent of the conductivity of the medium.
- Easy cleaning.
- Heated electronics to avoid condensation.
| Process Connection: | CLEANadapt G1/2″ | Adapter for Tri-Clamp, Varivent, DRD, Dairy flange |
| Insertion length: | 50, 100, 150, 200 mm |
| Wetted material: | Stainless steel 1.4404 (316L) Ra≤0.8 μm | PEEK |
| Measuring range: | Dk ≥ 20 |
| Available versions: | Insertion length selectable | Various temperature options (e.g. heated electronics) |
| Temperature range process: | up to 140 °C |
| Temperature range CIP/SIP: | 143 °C / max. 120 min. |
| Operating pressure: | max. 10 bar |
| Communication: | PNP | NPN |
