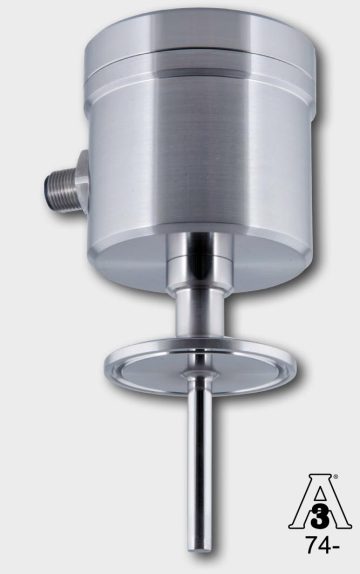

Anderson-Negele FTS-741

Calorimetric Flow Switch | Food, Beverage and Dairy

CIP Controls, Flow Sensors

Flow monitoring in pipes from 1″ on of ultrapure aqueous media without particles like ultra-filtrated media.

Fully compensated measurement up to 100°C of highly pure media without particles, such as ultra-filtered media.
Reliable dry-run protection and monitoring of pumps, filtres or agitators.
Monitoring of filters or valves.
Response time < 5 s.
Longlife technologie with integrated safety switch-off at temperatures > 100 °C.
Adjustable switching point.
Process connection Tri-Clamp.

Reliable flow control for all media

FTS – The solution for all aqueous, even high-purity media

Flow switches are used in almost all processes to monitor the technical safety of the plant and the correct operation of the processes.
A possible malfunction of a pump, a closed valve or a misdirected medium are reliably detected and reported.

FTS: The calorimetric flow switch with special benefits

Its special pulsed measurement method heats in short periods and detects the flow velocity quickly, reliably and permanently just by measuring the temperature change of the medium.

Ideal for all aqueous products (water content ≥50%): Also for demineralised and highly filtered media such as cola and other soft drinks, filtered beer, demineralised water, as well as for media in pressure lines.
Process temperature up to 100 °C (212°F): FTS is perfectly suited for all usual processes and media.
Fast: Due to the very slim sensor tip and the position of the heating element and Pt100 sensor directly at the fluid, the FTS has an extremely short response time for a calorimetric sensor.
Insensitive to temperature shocks: temperature changes due to e.g. cold product, hot water, CIP solutions have no influence on the measurement.
Versatile: Ideal for monitoring pump systems, valves, filters, agitators, cooling circuits, CIP return flow…
